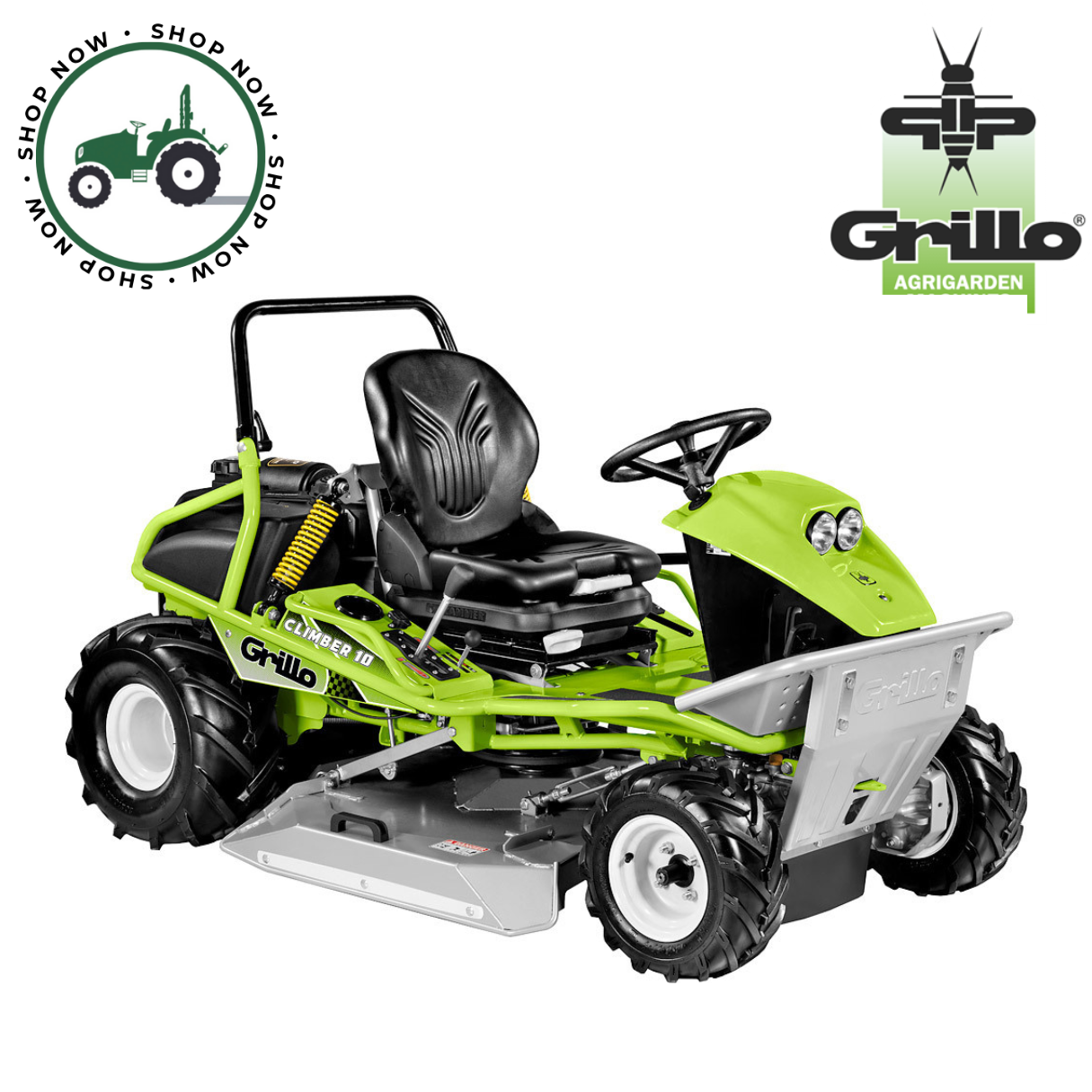

Grillo Climber 10 AWD 27

The cutting height is adjusted via a soft and comfortable lever. The cutting deck stops in the chosen position when the lever is released. Blades are engaged via an electric switch located near to the steering wheel. The electromagnetic clutch is fitted with a blade brake. The single-blade cutting deck has a working width of 98 cm, the progressive and assisted cutting height ranges from a minimum of 3,5 cm to a maximum of 13,5 cm. This 10 cm range allows the operator to easily negotiate kerbs and obstacles and allows them to work on uneven grounds.

The whole cutting system is always kept parallel to the ground, this ensures top cutting quality even after years of service.

The blade is made of special steel and has a low-noise profile, the double-cutting tips are retractable in case of impact and can be turned around when one side is worn out.
The whole structure of the cutting deck is very robust and remarkably resistant to impacts with stones. The large diametre blade shaft and cutting transmission guarantee reliability even under the most demanding conditions and for many hours in total safety.
The cutting deck has two side protection baffles that can be raised to make maintenance and cleaning easier.
The twin-cylinder, four stroke petrol engine has a 22 HP net power. It is fitted with a cyclonic professional air filter especially suitable for dusty environments and very easy to access for routine cleaning. The low-emission silencer is made of stainless steel. The fuel tank has a capacity of 13 litres and is equipped with a large filler for easier refuelling and a built-in fuel indicator on the cap.

Thanks to the four-wheel drive the operator can stop on slopes just by using the forward lever and can engage reverse in total safety with no wheel skidding.
The hydrostatic motors on the front axle are protected by an anti-shock steel plate.

The Climber 10 is equipped with major stainless steel hydraulic pipes connecting the two hydraulic axles. Together with a cooling fan placed on the rear axle, they keep the hydraulic oil working pressure low to guarantee high performances even under the most demanding working conditions.

TRACTOR wheels ensure adherence on irrgular grounds. In addition front wheels are puncture-proof.

The roll-bar can be tilted in a couple of seconds to allow working underneath foliage.
The roll-bar can be either raised or lowered via two levers, no other tools are required.

On the upper par of the cutting deck there is a baffle, that if positioned, inside the cutting deck, evenly distributes the grass onto the lawn.
The rotating beacon can be mounted on the roll-bar and is then connected to the 12V plug.

Each single component, from the simplest to the most complex, is of high quality. Frame, handlebar, cutting deck, are all designed and built by Grillo using exclusively premium materials and modern technology to ensure 100% controlled, high quality.
Painting of Grillo machines incorporates a double electrostatic powder coating process. At the first stage are the washing baths and preparation, then a first protective coat is applied which is then baked in a special oven, this has proven to be the best base for the application of the finish. The second coat consists of powder coating and still further baking in an oven at 190°C, this then produces the characteristic hardness and shine.
Assembling operations of Climber 10 AWD 27 are carried out meticulously by specialist staff.
It then undergoes a rigorous final test with its engine running to ensure that all of its functions work properly.

More proof of the quality of Grillo products.
