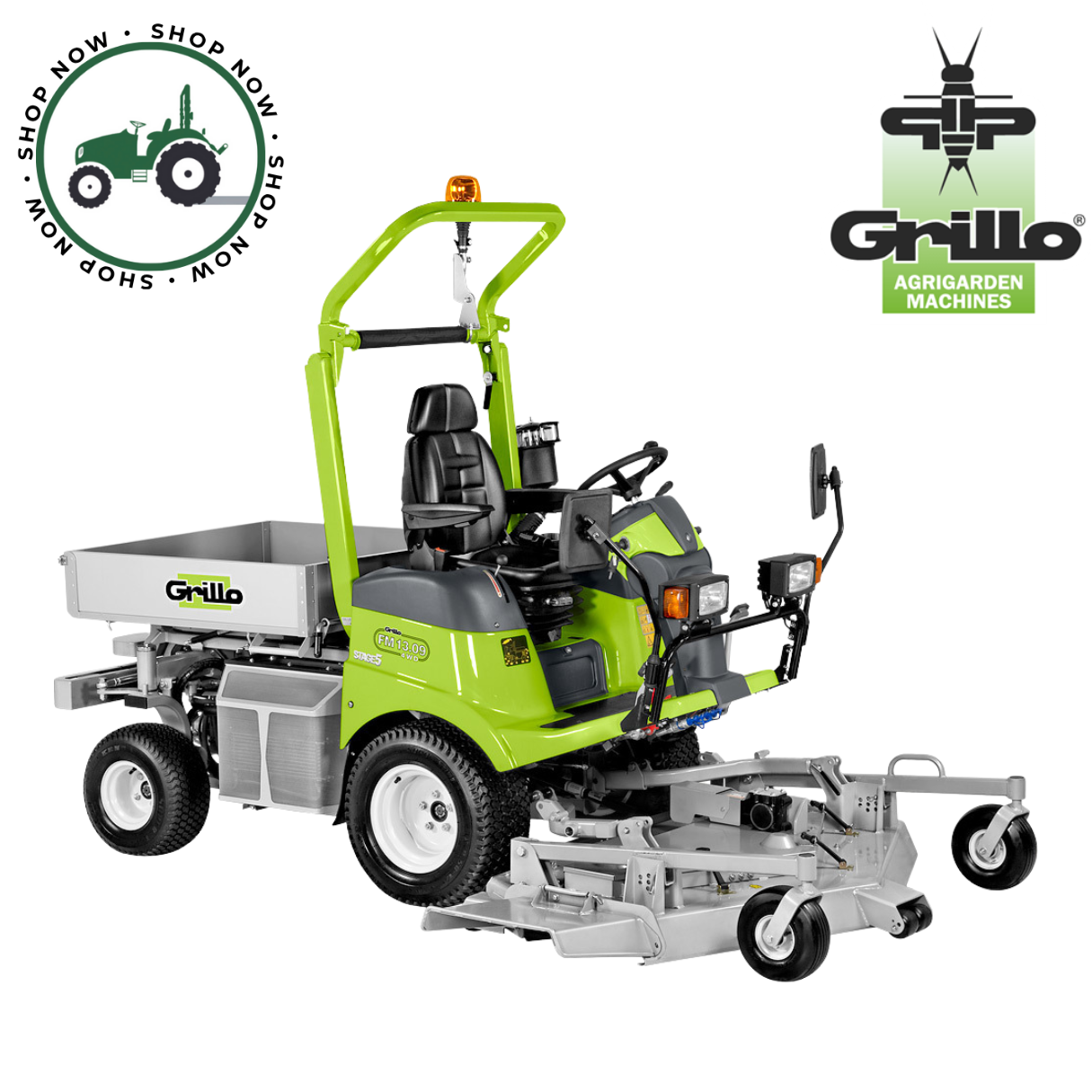

Grillo FD 13.09 4WD Out front Mower without collection.

PLEASE CONTACT US TO CHECK DELIVERY OPTIONS AND POSSIBLE LEAD TIME PRIOR TO ORDERING AT 01829 742146 info@turnergroundscare.co.uk

(We offer FREE delivery within a 50 mile radius)

	Engine	Yanmar 3TNV82A Stage5 Start electric, with 12 V battery Supply diesel Displacement 1331 cc, 3 Cylinders Power 26 HP (18.9 kW) Liquid cooled Dry air filter with interchangeable filter cartridges, safety filter and prefilter
	Fuel tank capacity	23 L
	Hydraulic oil tank	20 L
	Traction	Hydraulic, 4-wheel drive (permanent drive even with a narrow turning radius)
	Gearbox	Hydrostatic transmission with 4 hydraulic engines on the 4 wheels
	Clutch	Clutch: electromagnetic for PTO with magnetic blade brake
	Cutter deck	with rear and side discharge / mulching
	Cutting deck width	160 cm
	Cutting height	from 2 to 10 cm
	Load bed	Body with tilting rear extension, manual tipping by means of gas springs. Load bed with aluminium side extensions, ground made of iron. Rear board can be opened
	Differential locking	Automatic differential lock and manual with push button
	Front tyres	23x10.50-12 TURF WHEELS
	Rear tyres	18x8.50-8 TURF WHEELS
	Steering system	Hydraulic drive with steering wheel
	Speed	From 0 to 15 km/h continuously variable
	Inner turning radius	31 cm
	Seat	Super comfort and adjustable sprung seat with arm-rests.
	Service brake	Drum brake
	Parking brake	Drum brake
	Mowing capacity per hour (indicative)	12000 m²/h
	Standard features	Twin-hydraulic takes-off (max. pressure 120 bar, max. capacity 34L/1’ at 2400 rpm). Lights and indicator kit
	Length	325 cm
	Width	192 cm
	Height	175 cm
	Clear span from the ground	15 cm
	Weight	1102 kg (with 160 LMP cutting deck)
