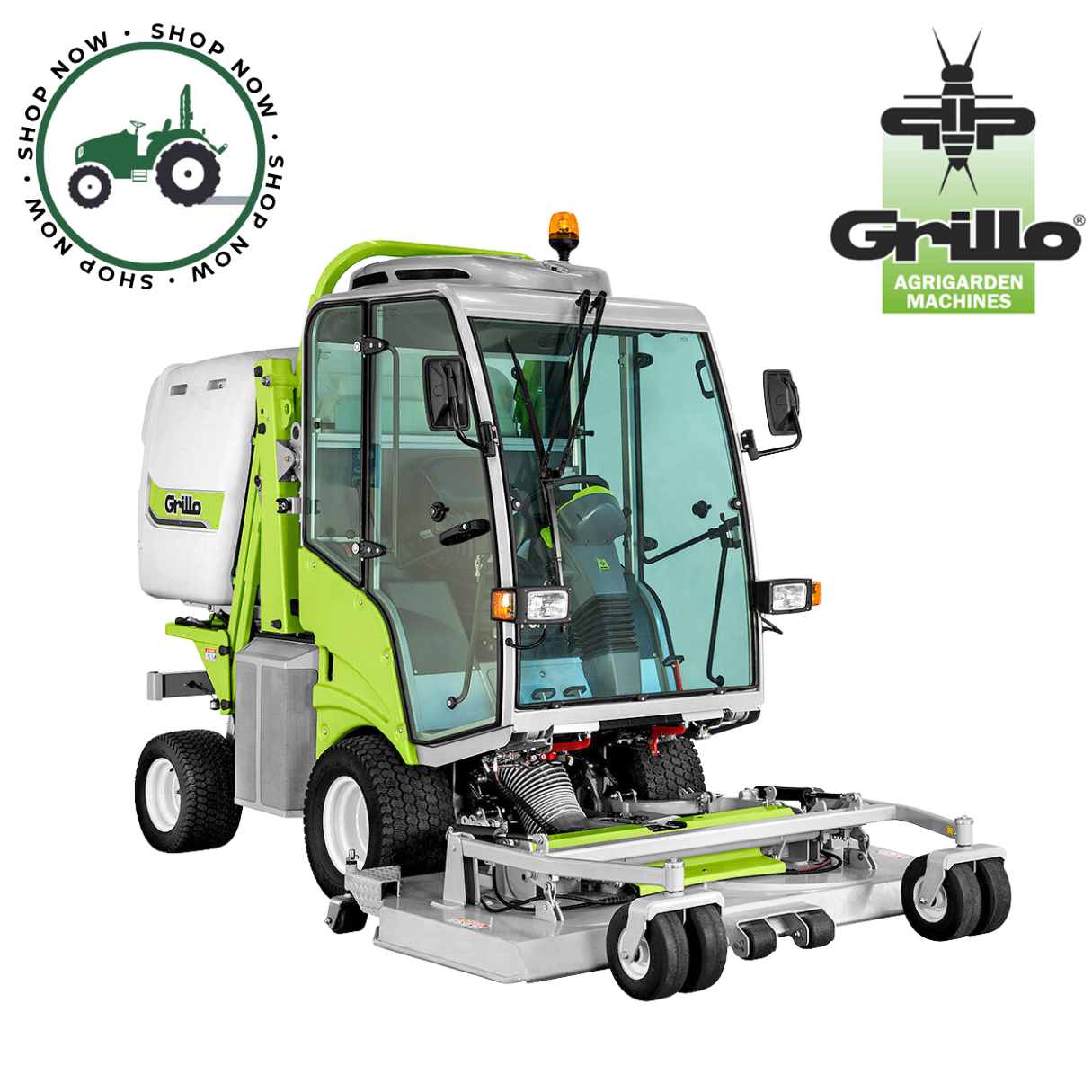

Grillo FD 2200 4WD with collection and heated cabin

PLEASE CONTACT US TO CHECK DELIVERY OPTIONS AND POSSIBLE LEAD TIME PRIOR TO ORDERING AT 01829 742146 info@turnergroundscare.co.uk

(We offer FREE delivery within a 50 mile radius)

The FD 2200 4WD represents the maximum expression of technology and performance that can be achieved by today's hydrostatic mowers with collection.

It has 4 permanent drive wheels, front cutting deck, large grass collection container and raised discharge height. The state-of-the-art, powerful and reliable engine has low polluting emissions and complies with international STAGE 5 standards.

The 60 cm turning radius, the unique manoeuvrability, the maximum stability on slopes, the excellent cutting capacity of the robust front deck and a collection system capable of compacting the grass inside the large grass catcher, are able to satisfy every demanding operator who is attentive to the quality of his work.

	Engine	Yanmar 4TNV88C Stage5 Start electric, with 12 V battery Supply diesel Displacement 2190 cc, 4 Cylinders Power 47 HP (34.3 kW) Liquid cooled with hydraulic impeller and equipped with automatic radiator cleaning device Dry air filter with interchangeable filter cartridges, safety filter and prefilter
	Fuel tank capacity	50 L
	Hydraulic oil tank	25 L
	Traction	hydraulic, 4 wheel drive (permanent even with narrow turning radius)
	Gearbox	hydrostatic transmission with hydraulic motors on the 4 wheels
	Clutch	hydraulic, with electric control activated through PTO and with blade brake
	Cutting height	hydraulic adjustable from 2 to 12 cm
	Grass collector capacity	1400 L
	Grass catcher charging system	Ø 400 cm (16 “) turbine with hydraulic motor fitted with a safety valve to avoid damage due to foreign objects. Turbine activation independent of the cutting deck. Double working speed.
	Grass collector discharging system	hydraulic grass catcher emptying with automatic opening
	Maximal discharging height	250 cm
	Rear projection	50 cm
	Differential locking	self-engaging and manual with push button
	Front tyres	24x12.00-12 garden
	Rear tyres	20x10.00-10 garden
	Steering system	steering wheel with hydraulic drive
	Speed	from 0 to 22 km/h continuously variable
	Inner turning radius	62 cm
	Seat	super comfort adjustable and sprung seat with armrests
	Mowing capacity per hour (indicative)	15500 m^2/h
	Standard features	automatic disengagement of blade and turbine when grass catcher is full. Hydraulic deck lifting and grass catcher emptying. Lights and indicators kit
	Standard features	digital display with rpm indication and safety micro-switches control
	Length	281 cm without cutting deck - 364 cm with cutting deck [p/n. 9M5211]
	Width	138 cm without cutting deck - 162 cm with cutting deck [p/n. 9L9611]
	Height	199 cm (with roll bar or cabin 231 cm)
	Distance between axles	141 cm
	Clear span from the ground	16 cm
	Weight	1385 kg without cutting deck - 1656 kg [p/n. 9M5211]
