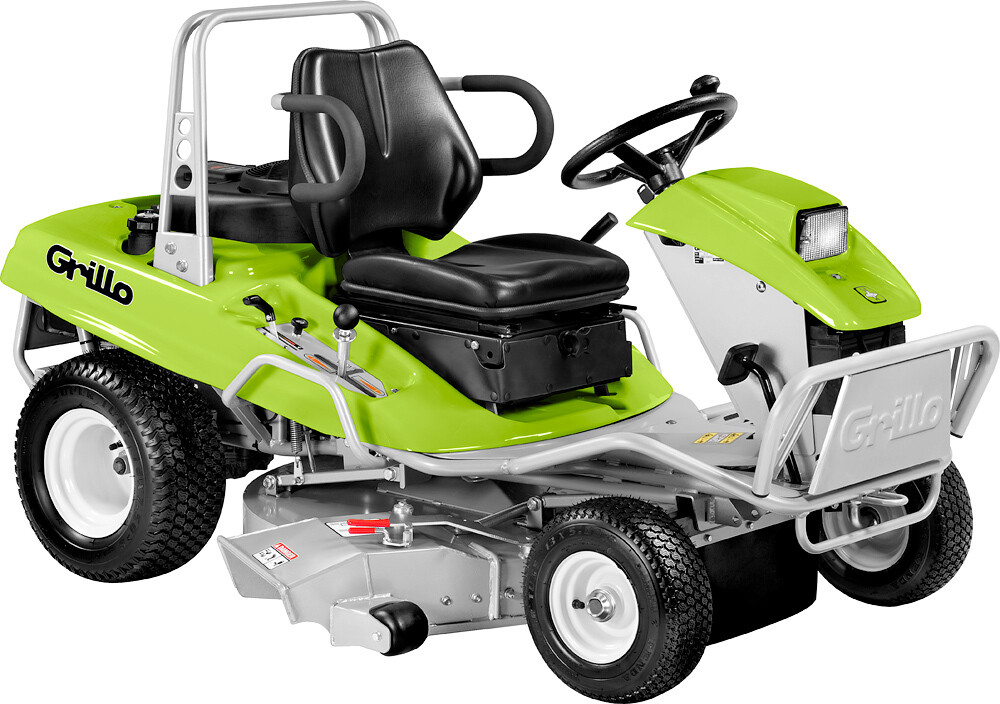

Grillo MD 18

The MD 18 is a hydrostatic mower with a duel-purpose 83 cm cutting deck, equipped with a "Quick Shift" lever to switch between side discharge and mulch directly from the drivers seat. The MD 18 is equipped with a differential lock and a electromagnetic clutch for engaging the blade.

The MD 18 has a 45cm steering radius, very low centre of gravity and uniform weight distribution.

Turf tyres are fitted to reduce damage to the ground and its fitted with an Briggs & Stratton 7180 Intek 15.2 HP (18 HP gross power) engine.

	Engine	Briggs & Stratton 7180 Intek Start electric, with 12 V battery Supply fuel Displacement 656 cc, 2 Cylinders Power 15.2 HP (11.3 kW) - Gross power 18 HP Air cooled Dry air filter
	Fuel tank capacity	7 L (emergency supply 1 L)
	Gearbox	Hydrostatic transmission
	Clutch	Electromagnetic with P.T.O and blade brake.
	Cutter deck	Side discharge and mulching with Quick Shift lever.
	Cutting configuration
	Cutting width	83 cm
	Cutting height	From 2,5 cm (±1.3’’) to 8 cm (±3.1’’), with 6 different cutting positions and 1 transfer position.
	Peripheral blade speed	72 m/s
	Differential locking	Engaged via a pedal
	Front tyres	13x5.00-6 Turf wheels
	Rear tyres	16x7.50-8 Turf wheels
	Speed	Continuously variable from 0 to 9 km/h + reverse speed from 0 to 6 km/h
	Inner turning radius	45 cm
	Seat	With adjustable suspension and equipped with armrests and roll-bar
	Service brake
	Parking brake	Rear parking disc brake
	Mowing capacity per hour (indicative)	6000 m^2/h
	Standard features	Tow bar and front headlight led
	Length	175 cm
	Width	113 cm
	Height	102,5 cm
	Weight	238 kg
