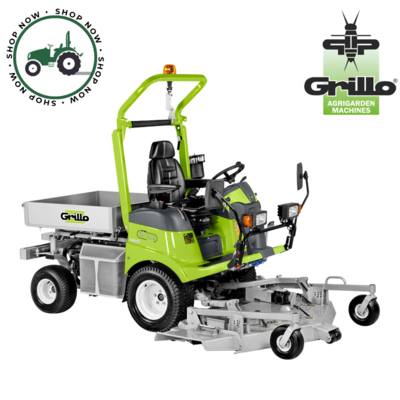

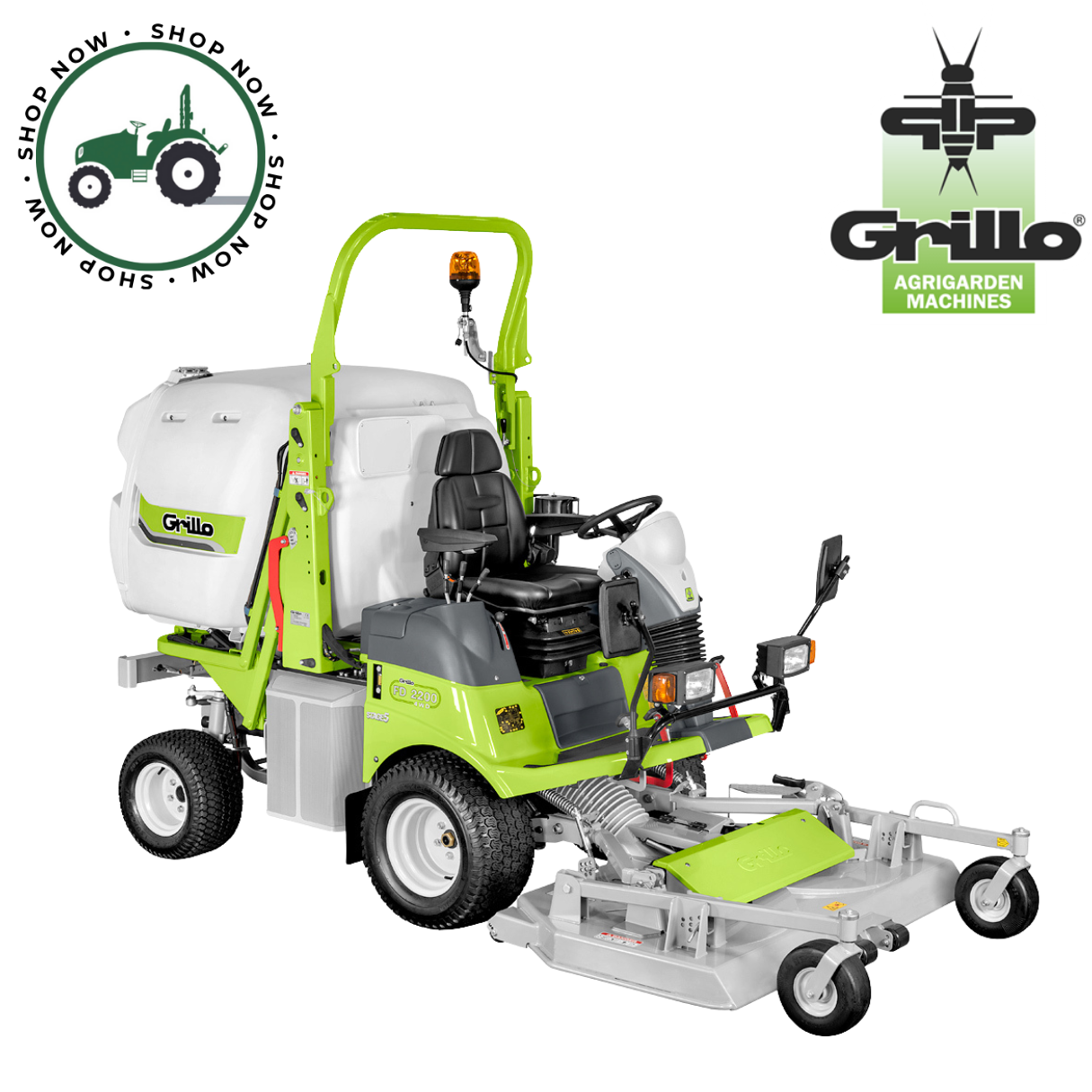

Grillo FD 2200 4WD Outfront Mower with collection

The FD 2200 is the maximum expression of technology and performance currently on offer from Grillo. The FD 2200 has a permanent 4WD system, front cutting deck and spacious grass catcher with raised discharge height. Even the most demanding user will be satisfied with the quality that can be achieved this machine thanks to its modern, powerful, reliable and low emission Stage 5 engine. The 62 cm turning radius gives it great manoeuvrability, excellent stability on slopes and the cutting capacity of the front cutting deck combined with the collection system compacts the grass into the grass-catcher makes the FD 2200 a pleasure to use.

	Engine	Yanmar 3TNV88C Stage5 Start electric, with 12 V battery Supply diesel Displacement 1642 cc, 3 Cylinders Power 37 HP (27.5 kW) Liquid cooled with electric impeller and equipped with automatic radiator cleaning device Dry air filter with interchangeable filter cartridges, safety filter and prefilter
	Fuel tank capacity	50 L
	Hydraulic oil tank	25 L
	Traction	hydraulic, 4 wheel drive (permanent even with narrow turning radius)
	Gearbox	hydrostatic transmission with hydraulic motors on the 4 wheels
	Clutch	Hydraulic with electric control activated through PTO with blade brake
	Cutting height	Adjustable at 25 - 35 - 50 - 60 - 75 - 85 - 95 - 110 mm
	Grass collector capacity	1200 L
	Grass catcher charging system	Charging turbine, 400 mm diameter, equipped with a hydraulic engine as well as a safety valve in order to avoid accidental damages. Independent activation from the cutting deck. Grass catcher equipped with motorised baffle inside the for even filling.
	Grass collector discharging system	Hydraulic grass catcher emptying with automatic opening
	Maximal discharging height	230 cm
	Rear projection	30 cm
	Differential locking	Self-engaging and manual by pushing the button
	Front tyres	Turf 24x12.00-12
	Rear tyres	Turf 20x10.00-10
	Steering system	Hydro-steer
	Speed	Continuously variable from 0 to 20 km/h
	Inner turning radius	62 cm
	Seat	Comfortable seat equipped with springs with arm-rests and adjustable
	Mowing capacity per hour (indicative)	15500 m^2/h
	Standard features	Automatic disengagement of blades and turbine when the grass catcher is full. Hydraulic cutting deck lifting and emptying. Lights and indicator kit
	Length	261 cm without cutting deck - 347 cm with cutting deck [cod. 9L9611]
	Width	138 cm without cutting deck - 162 cm with cutting deck [cod. 9L9611]
	Height	183 cm with the roll bar let down – 243 cm with roll bar or cabin
	Distance between axles	126 cm
	Clear span from the ground	16 cm
	Weight	1270 kg without cutting deck - 1490 kg with cutting deck [cod. 9M6711]
