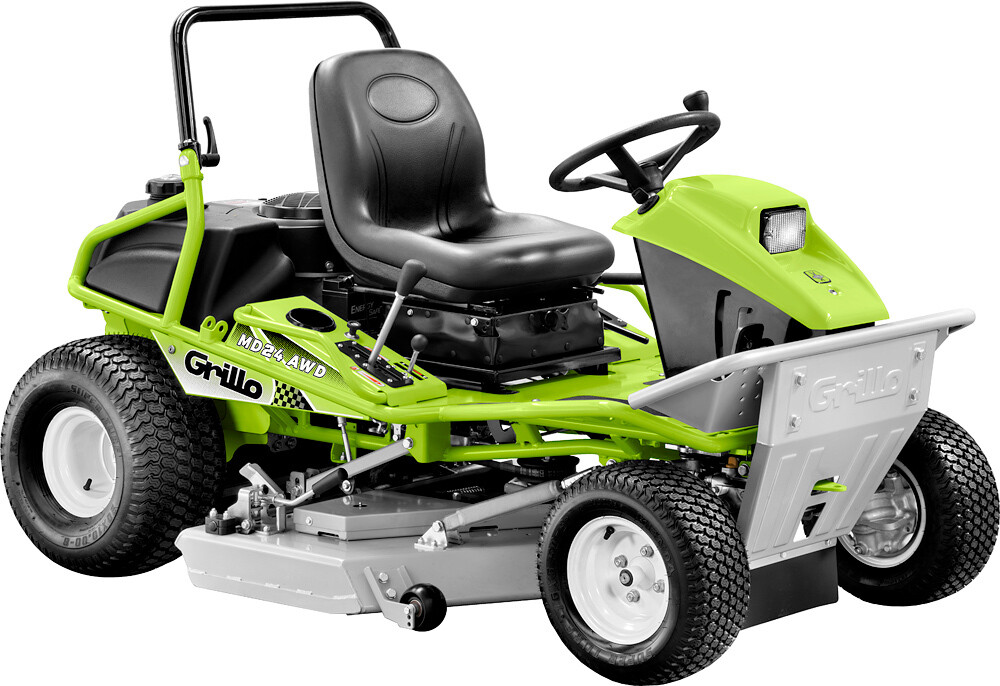

Grillo MD 24 AWD

Hydrostatic Mower with duel function cutting deck, cut and drop plus low centre of gravity.

This MD 24 AWD achieves outstanding performance in areas with uneven ground or around trees. The MD 24 AWD has great versatility with a very low centre of gravity for stability, its equipped with a "QUICK SHIFT" lever to change the cutting mode. This can be controlled from the driving position with no need to leave your seat. This function allows you to switch from mulch to side discharge. When the grass is tall we recommend the cut and drop function when cutting isn't done regularly. Choose the mulch function when the grass is medium to long in length. If you cut a third of the grass, all the clippings will be finely shredded and evenly spread for a better finish and this will create the ideal conditions for the absorption of nutrients that freshly cut grass provides for regrowth.

If you are looking for the best results for mulching we recommend that the lawn is dry, and you set the speed for the conditions you have on the day. You can also choose the mulch mode on a second pass to achieve and allow an even better overall finish.

	Engine	Briggs & Stratton 7220 Professional Series V-Twin Start electric, with 12 V battery Supply fuel Displacement 656 cc, 2 Cylinders Power 18 HP (13.2 kW) - Gross power 22 HP Air cooled Dry air filter
	Fuel tank capacity	13 L
	Gearbox	4-wheel-drive hydrostatic transmission.
	Clutch	Electromagnetic clutch with P.T.O and blade brake.
	Cutter deck	rear discharge or mulching via “Quick Shift” lever.
	Cutting configuration	3 rotating blades.
	Cutting width	106 cm
	Cutting height	Continuously adjustable from 2,5 to 10 cm via gas spring.
	Peripheral blade speed	83 m/1"
	Differential locking	On the rear axle, with pedal engagement.
	Front tyres	16x6.50-8
	Rear tyres	20x10.00-8
	Speed	Continuously variable from 0 to 9 km/h + reverse speed from 0 to 8 km/h
	Inner turning radius	70 cm
	Seat	Adjustable and with mechanical suspension. Equipped with roll-bar.
	Service brake
	Parking brake	On the rear wheels with lever engagement.
	Mowing capacity per hour (indicative)	8500 m^2/h
	Standard features
	Length	206 cm
	Width	113 cm
	Height	118,5 cm
	Distance between axles	142 cm
	Weight	370 kg
