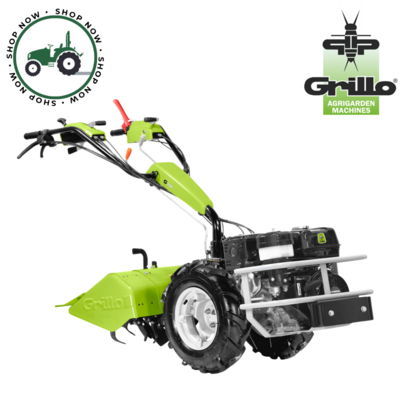

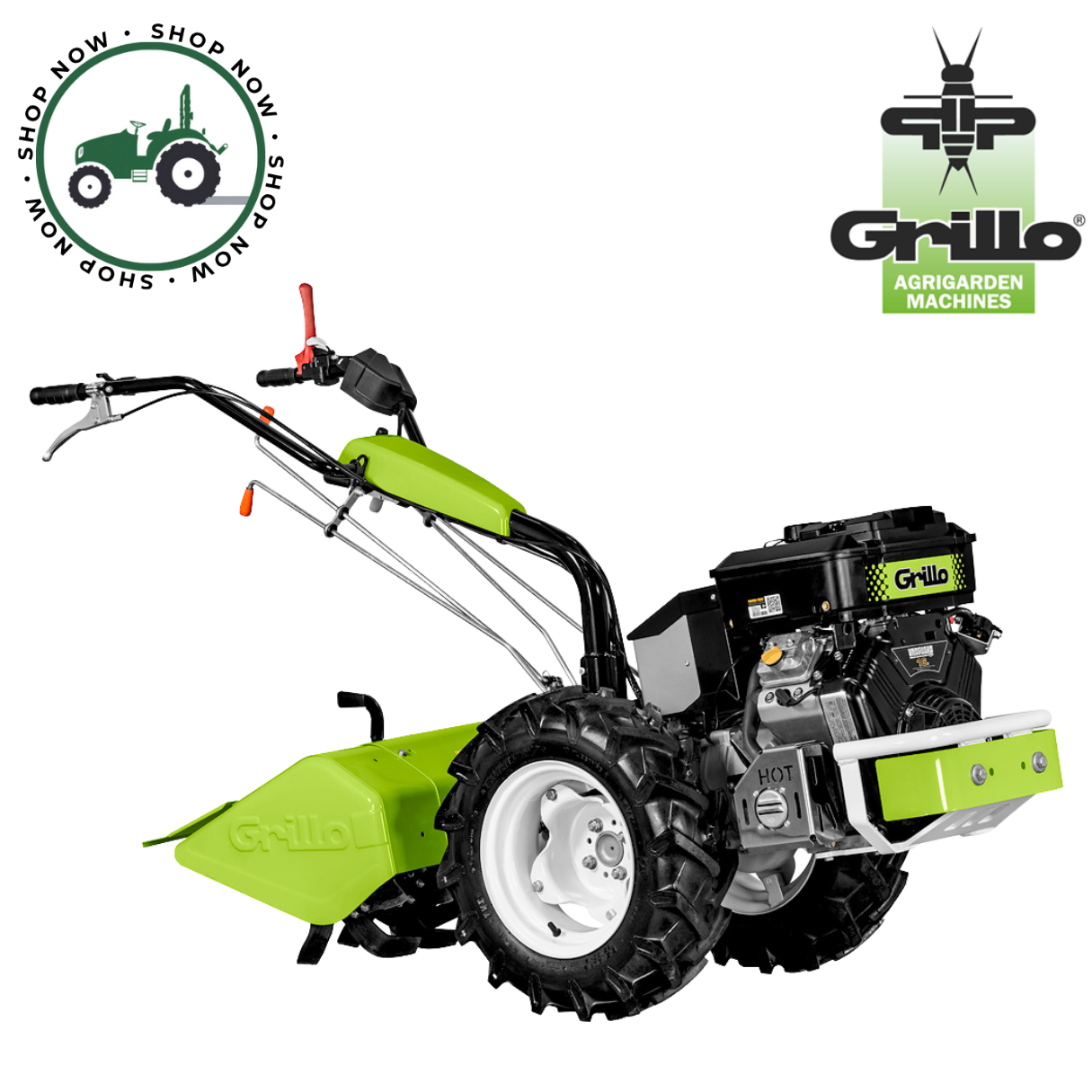

The G 131 is an ideal walking tractor for working in large areas in agriculture, horticulture, and in vegetable gardens.
It is a well-balanced machine, fitted with a 6-speed gearbox in oil-bath with 4 forward gears + 2 reverse gears.
Due to the possibility to reverse the handlebar, several front and rear implements can be mounted to this machine, such as: rotary tiller, sickle bar, all purpose flail, snow thrower, power harrow etc.
They can be connected via a flanged coupling. An optional plough kit containing large wheels, wheel extensions, turn-wrest plough and wheel weights.
To make transport easier when the engine is turned off, you can disengage the wheel axle.
A greater stability can be achieved by widening the wheel track from 12 to 24 cm using the appropriate Grillo wheel extensions.
Engine | Briggs & Stratton 16 Vanguard V-Twin OHV Start electric, with 12 V battery Supply fuel Displacement 479 cc, 2 Cylinders Power 14 HP (10.3 kW) - Gross power 16 HP Air cooled Dry air filter with interchangeable filter cartridges |
|
Engine | Kohler KD15 440 Start recoil starter and electric with 12V battery Supply diesel Displacement 441 cc, 1 Cylinder Power 11 HP (8.1 kW) Air cooled Oil bath air filter |
|
Fuel tank capacity | 8.5 L (Vanguard 16) - 5 L. (KD15 440) | |
Transmission | with oil bath gears | |
Gearbox | With clutch engagement. The walking tractor version has 4 forward gears + 2 reverse gears. The sickle bar version has 2 forward gears + 2 reverse gears | |
Clutch | single dry disc with manual control | |
Standard rotary tiller | Adjustable rotary tiller with x 4 tines Working width 700 mm | |
Hoes system diametre | 32 cm (tiller x 4) - 36 cm (tiller x 6) | |
Working width | Adjustable at 550 and 700 mm (850 mm with extension kit cod. 930312) | |
Working depth | 18 cm | |
Item no. standard rotary tiller | 989011 | |
P.T.O. | a higher one (upon request) synchronised with the gearbox; one lower at 1028 rpm in clockwise rotation with engine at 3000 rpm | |
Differential locking | Differential with locking device by lever on the handlebar | |
Available tyres | Tractor 5.00-12 wheels (adjustable disks) and 6.5/80-12 wheels (adjustable disks). Wide steel wheels having diametre 46 x 12 cm | |
Speed | In the walking tractor version with 5.00-12 wheels 1st gear 1,2 km/h, 2nd gear 2,4 km/h, 3rd gear 3,4 km/h, 4th gear 7,1 km/h, 1st reverse gear 1,7 km/h, 2nd reverse gear 3,5 km/h. In the sickle bar version with 5.00-12 wheels 1st gear 1,7 km/h, 2nd gear 3,5 km/h , 1st reverse gear 1,2 km/h, 2nd reverse gear 2,4 km/h | |
Service brake | Brake drum (kit upon request cod. 978611) | |
Handlebar | height and side adjustment, reversible | |
External sizes of the wheels | 55, 60, 70 or 75 cm with 5.00-12 wheels | |
Weight | 195 kg (with Vanguard 16) - 192 kg (with KD15 440) |
