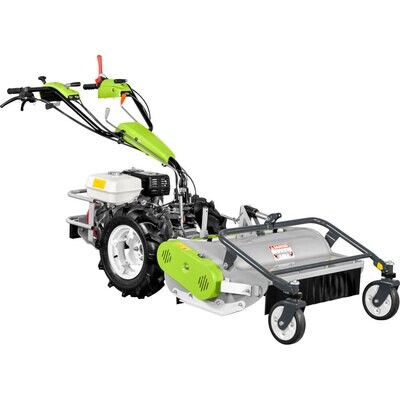

The Grillo G110 is an ideal walking tractor for working in agriculture, horticulture, in vegetable plots and gardening in large areas.
It is a well-balanced machine, fitted with a 6-speed gearbox with 3 forward gears + 3 reverse gears. The differential lock comes as a standard feature.
Despite its devices, such as active clutch and automatic reverse gear decelerator, this walking tractor can be safely handled by the user.

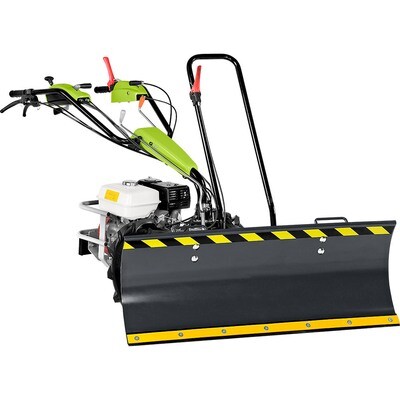

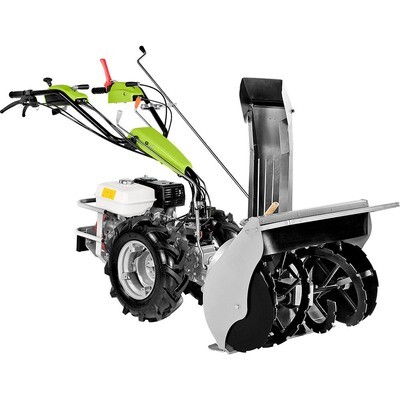

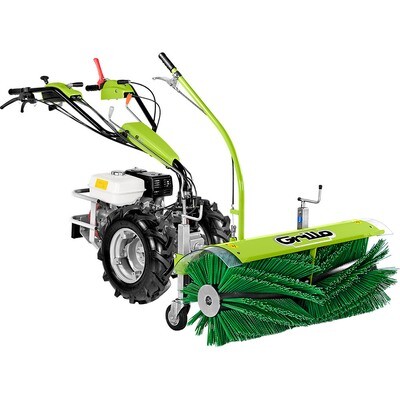

A great deal of front and rear – mounted attachments can be connected to the machine due to the reversing of the handlebar by 180°. Also an optional plough kit including larger diametre wheels, wheel extensions, turn-wrest plough and wheel weights. Attachments can connected through a flanged coupling or a quick coupling without needing tools.
The automatic quick gear-inverter lever reverses the forward movement when the handlebar is 180° turned.
To achieve a greater stability on slopes you can increase the wheel track up to 25 cm by using the appropriate fixed or adjustable Grillo wheel extensions.

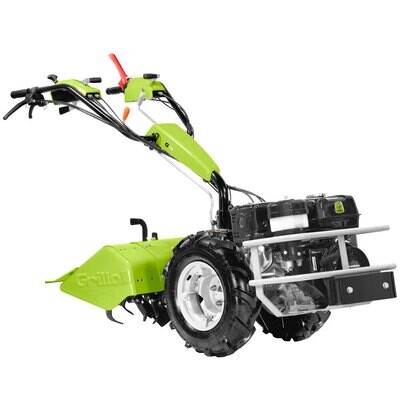

Engine | Honda GX390 OHV Start recoil starter Supply fuel Displacement 389 cc, 1 Cylinder Power 11.7 HP (8.7 kW) Air cooled Oil bath air filter |
|

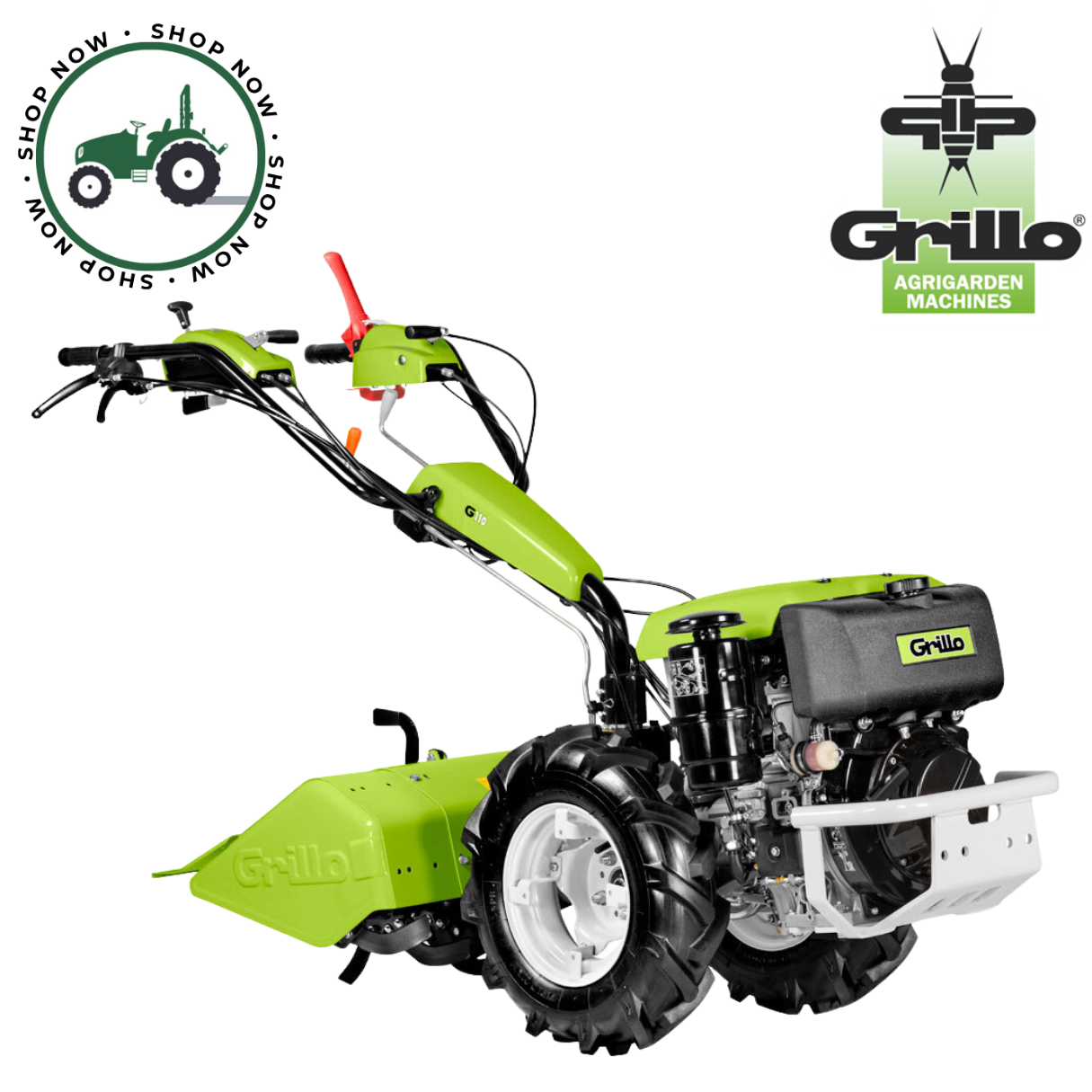

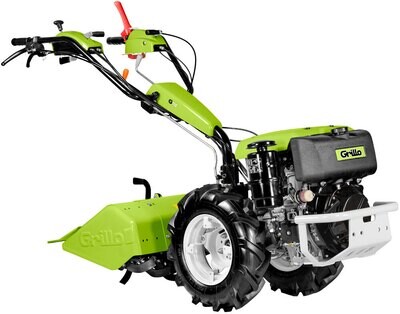

Engine | Kohler KD15 440 Start recoil starter and electric with 12V battery Supply diesel Displacement 441 cc, 1 Cylinder Power 11 HP (8.1 kW) Air cooled Oil bath air filter |
|
Fuel tank capacity | 6,1 Lt. (GX390) - 5,0 Lt. (KD15 440) | |
Transmission | Gear type in oil bath. | |
Gearbox | With inverter. Walking tractor version: 3 forward gears + 3 reverse gears. Sickle bar version: 3 forward gears + 3 reverse gears. | |
Reverse gear unit | Rapid through lever. | |
Clutch | Conic and active. | |
Standard rotary tiller | Adjustable, with tines x4. Working width: 68 cm. | |
Hoes system diametre | 32 cm | |
Working width | Adjustable 37, 47, 58, 68 cm. | |
Working depth | 16 cm. | |
Item no. standard rotary tiller | 984611 | |
P.T.O. | 965 revolutions independent from gearbox (walking tractor version: clockwise rotation / sickle bar version: anticlockwise rotation). | |
Differential locking | With lock device through lever. | |
Available tyres | 4.00-10, 5.00-10 (5.00-12 for furrower and ploughing only), wide steel wheels 40x10 cm, Turf wheels 20x10.00-8 (item 937112 needed) | |
Speed | With 5.00-10 wheels: 1st gear 1,3 km/h, 2nd gear 2,4 km/h, 3rd gear 5,0 km/h. I° Reverse gear 0,7 km/h, II° Reverse gear 1,5 km/h, III° Reverse gear 3,2 km/h. | |
Service brake | Drum brake, as a standard feature. | |
Handlebar | With height and side adjustment and reversible. | |
Safety devices | Active clutch, reverse speed – PTO cut out, automatic decelerator in reverse speed. | |
Weight | 142 kg (GX390) with cm 68 rotary tiller and 5.00-10 wheels- 168 kg (KD15 440) with cm 68 rotary tiller and 5.00-10 wheels. |
