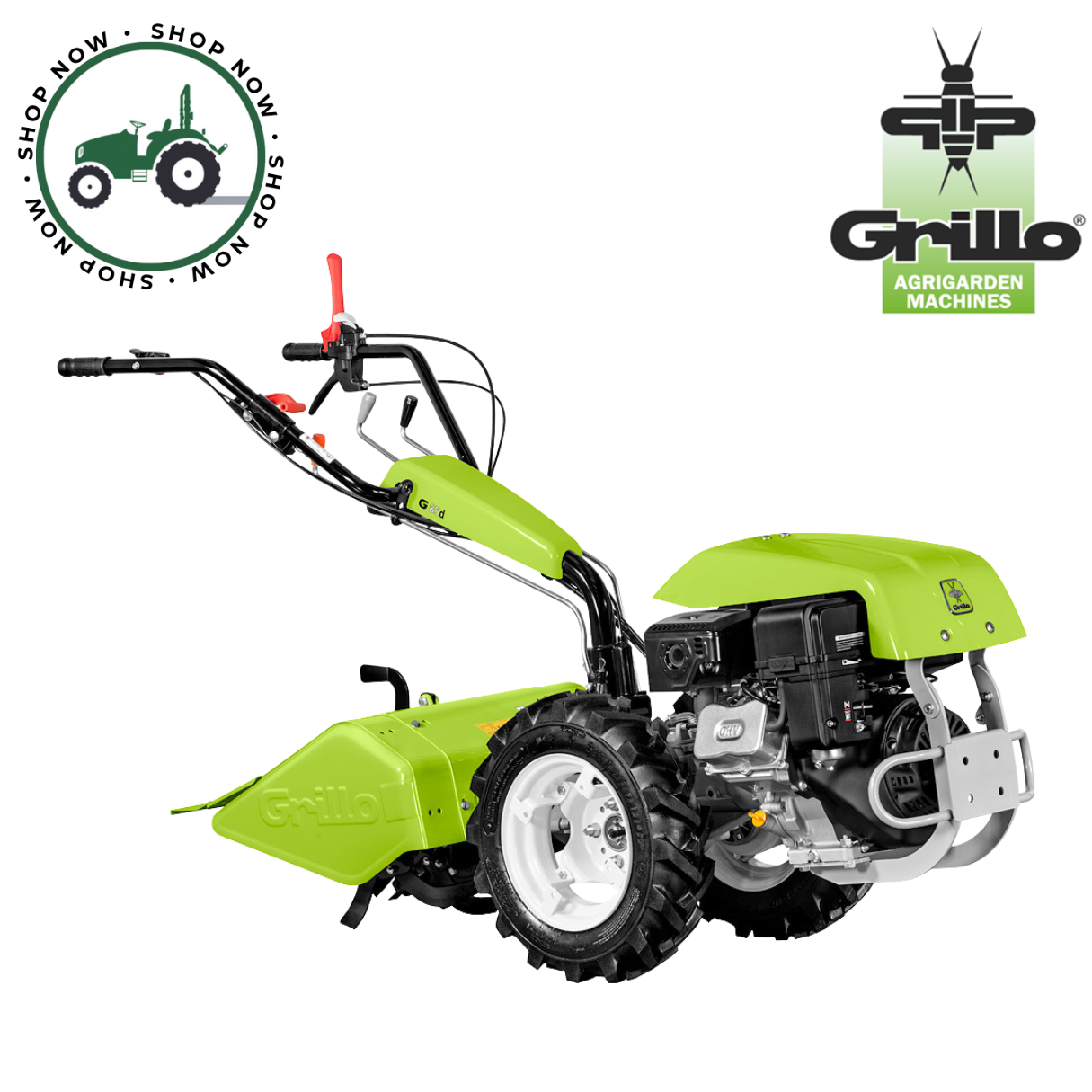

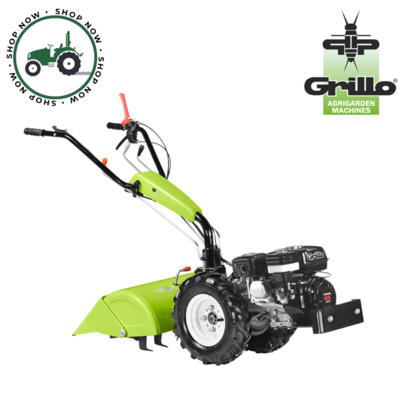

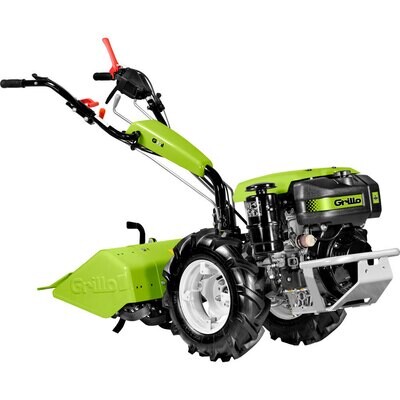

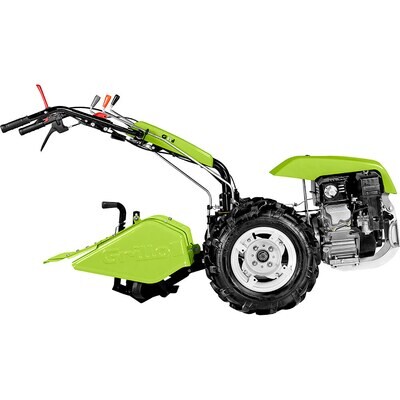

The Grillo G85d is an appropriate walking tractor for working in horticulture, orchards, vegetable plots and for gardening in medium-sized and large areas.

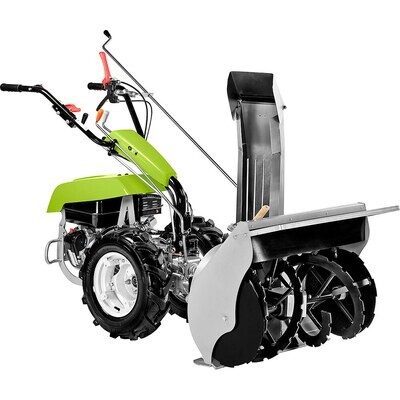

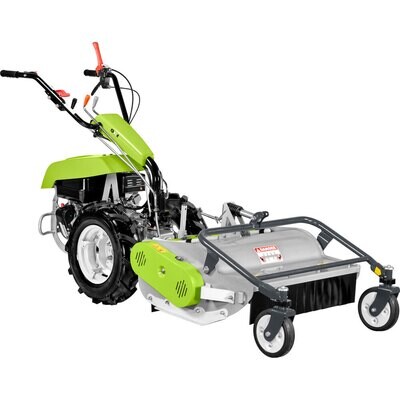

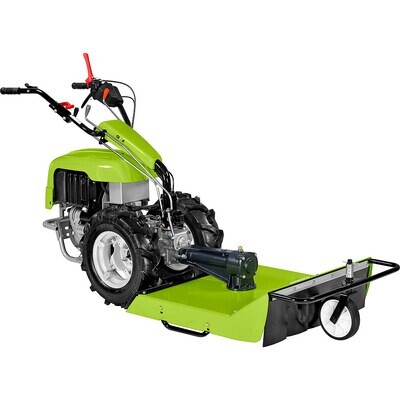

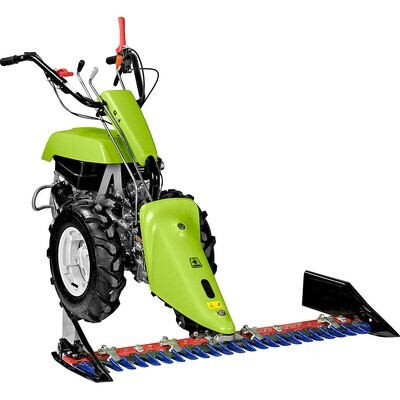

It is fitted with a 4 speed- gearbox with gears in oil-bath, with 2 forward and 2 reverse gears. The differential lock comes as a standard feature. Due to the several safety devices it is fitted with, this walking tractor can be safely used. Thanks to the possibility to reverse the handlebar through 180°, a lot of front and rear-mounted attachments can be connected to the machine, such as: rotary tiller, sickle bar, all purpose flail, snow thrower etc. via either a flanged coupling or through a quick coupling for which no tools are needed.

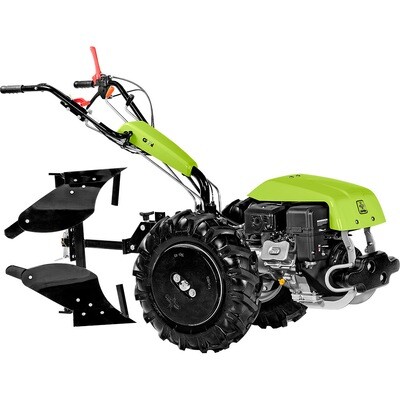

A plough kit is available too and includes larger wheels, adjustable extensions, a 180° turn-wrest plough and wheel weights.
To achieve a greater stability on slopes, it is possible to widen the wheel track up to maximum 25 cm by using fixed or adjustable wheel extensions.
Engine | Kohler KD15 350 Start recoil starter Supply diesel Displacement 349 cc, 1 Cylinder Power 7.5 HP (5.5 kW) Air cooled Oil bath air filter |
|
Engine | Kohler KD15 350 Start recoil starter and electric with 12V battery Supply diesel Displacement 349 cc, 1 Cylinder Power 7.5 HP (5.5 kW) Air cooled Oil bath air filter |
|
Engine | Loncin G300FA Start recoil starter Supply fuel Displacement 302 cc, 1 Cylinder Power 9.3 HP (6.8 kW) Air cooled Dry air filter |
|
Engine | Rato R300D Start recoil starter and electric with 12V battery Supply fuel Displacement 301 cc, 1 Cylinder Power 8.2 HP (6 kW) Air cooled Dry air filter |
|
Engine | Honda GX270 OHV Start recoil starter Supply fuel Displacement 270 cc, 1 Cylinder Power 8.4 HP (6.3 kW) Air cooled Oil bath air filter |
|
Fuel tank capacity | 5.4 L eng. R300D - 6.1 L eng. G300FA - 4.3 L eng. KD15 350 - - 5.3 L. eng. GX270 | |
Transmission | with oil bath gears | |
Gearbox | With clutch engagement. The walking tractor version has 2 forward gears + 2 reverse gears. The sickle bar version has 2 forward gears + 2 reverse gears | |
Reverse gear unit | by lever | |
Clutch | conic active | |
Standard rotary tiller | Adjustable rotary tiller with x 4 tines. Working width 580 mm | |
Hoes system diametre | 32 cm | |
Working width | Adjustable at 370 and 470 mm (680 mm with extension kit cod. 929112) | |
Working depth | 16 cm | |
Item no. standard rotary tiller | 984511 | |
P.T.O. | 965 rpm independent of the gearbox. Clockwise rotation for the walking tractor version, anticlockwise rotation for the sickle bar version. | |
Differential locking | Differential with locking device by lever on the handlebar | |
Available tyres | Pneumatic wheels tractor 4.00-8 (fixed disks), 4.00-10 (adjustable disks) and 5.00-10 (adjustable disks). Pneumatic wheels tractor 5.00-12 (adjustable disks) for plough kit. Wide steel wheels having diameter 40 x 10 cm. Pneumatic wheels garden 20x10.00-8 (extensions cod. 937112 needed) | |
Speed | With 4.00-10 wheels 1st gear 1,2 km/h, 2nd gear 3,0 km/h | |
Service brake | Brake drum (kit upon request cod. 978111) | |
Handlebar | Height and side adjustment. Fitted on anti-vibration blocks | |
Safety devices | Active clutch, reverse speed – PTO cut-out | |
Weight | Weight: standard version 127 kg |
