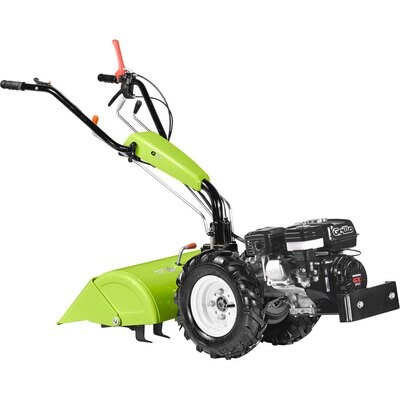

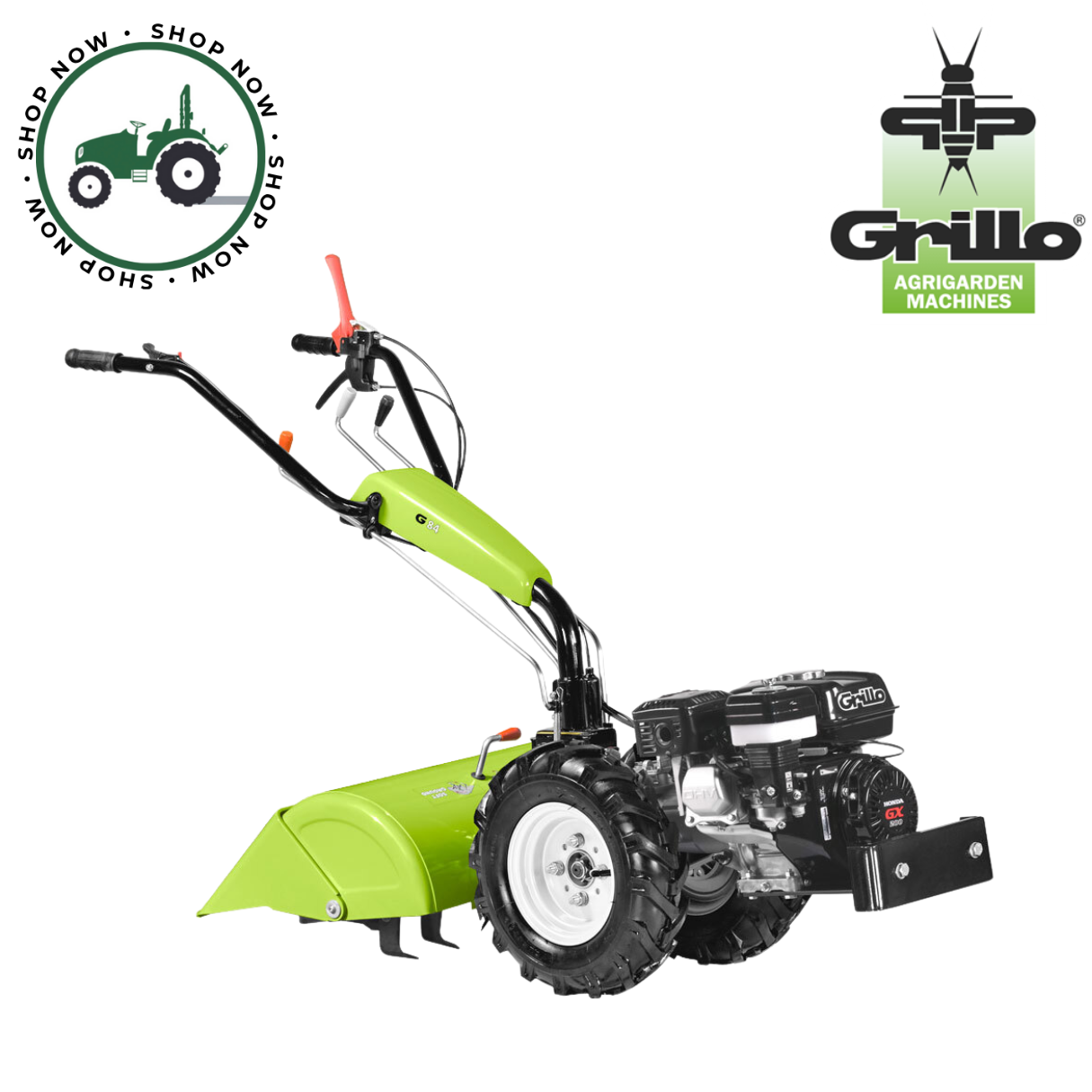

The Grillo G84 is an ideal walking tractor for works in horticulture, orchards, vegetable plots and in gardening. It is a robust machine ideal to work on any kind of soil.
G84 is fitted with a 4 speed-gearbox in oil-bath, with 2 forward + 2 reverse gears.

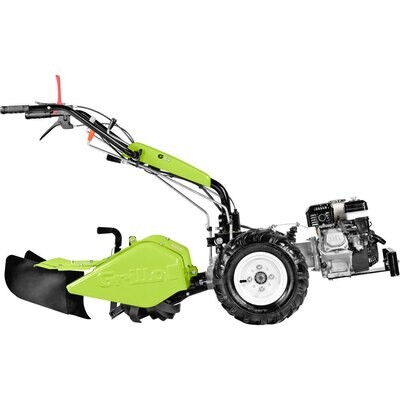

Several front and rear-mounted implements can be applied to this machine, due to its 180° reversible handlebar, such as standard rotary tiller, counter – rotating tiller, sickle bars and furrow behind the rotary tiller.
These attachments can be connected to the machine through a solid flanged coupling.
Engine | Honda GX200 OHV Start recoil starter Supply fuel Displacement 196 cc, 1 Cylinder Power 5.5 HP (4.1 kW) Air cooled Oil bath air filter |
|
Fuel tank capacity | 3,1 L | |
Transmission | With oil bath gears | |
Gearbox | With clutch engagement. The walking tractor version has 2 forward gears + 2 reverse gears. The sickle bar version has 2 forward gears + 2 reverse gears | |
Reverse gear unit | By lever | |
Clutch | Conic active | |
Standard rotary tiller | Adjustable rotary tiller with x 4 tines. Working width 580 mm | |
Hose system diametre | 32 cm | |
Working width | Adjustable at 370 and 470 mm (680 mm with extensions) | |
Working depth | 16 cm | |
P.T.O. | 965 rpm independent of the gearbox. Clockwise rotation for the walking tractor version, anticlockwise rotation for the sickle bar version. | |
Available tyres | Pneumatic wheels tractor 4.00-8 (fixed disks), 4.00-10 (adjustable disks) and 5.00-10 (adjustable disks). Pneumatic wheels tractor 5.00-12 (adjustable disks) for plough kit. Wheels made of iron having diameter 40 x 10 cm. Pneumatic Turf wheels 20x10.00-8 (extensions cod. 937112 needed) | |
Service brake | Brake drum (kit upon request cod. 978111) | |
Handlebar | Height and side adjustment. Fitted on anti-vibration blocks | |
Safety devices | Active clutch, reverse speed – PTO cut-out | |
External sizes of the wheels | 42 or 37 cm with 4.00-8 wheels | |
Weight | with tiller, 111 kg |
The tiller support wheel is fitted to the rear of the rotary tiller using a spring-loaded quick pin.
It keeps the hoes off the ground and facilitates transfers.
It cannot be used with double rotation tiller code 994711
