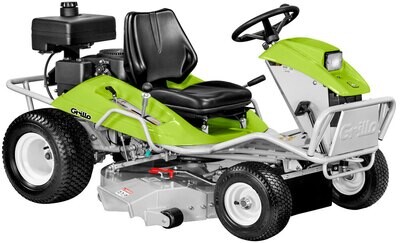

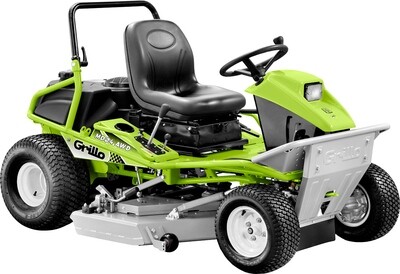

Grillo MD 28 AWD

PLEASE CONTACT US BEFORE ORDERING TO CHECK LEAD TIMES AND DELIVERY COSTS. 01829 742146

The MD 28 AWD is the top of the range mower of the MD SERIES. It has a hydrostatic mower with duel-purpose 132 cm cutting deck. The MD 28 is equipped with a "Quick Shift" lever to switch between rear discharge and mulch directly from the drivers seat. It features permanent four wheel drive with a powerful engine. It performs very well when cutting grass in large areas or on any steep slopes. This machine can be used by a professional or private use as it will deliver a very high quality cut.

The cutting height can be smoothly adjusted by a gas spring, the cut height can range between 2.5 - 11cm. The MD 28 AWD is equipped with an electromagnetic clutch, a differential lock and a brake on the rear wheels, that are engaged via a pedal, whereas the parking brake on the rear wheels is operated by a lever.

	Engine	Briggs & Stratton Series 8270 Commercial Start electric, with 12 V battery Supply fuel Displacement 724 cc, 2 Cylinders Power 22 HP (16.2 kW) Air cooled Dry air filter with interchangeable filter cartridges
	Fuel tank capacity	13 L
	Gearbox	4-wheel-drive hydrostatic transmission.
	Clutch	Electromagnetic clutch with P.T.O and blade brake.
	Cutter deck	rear discharge or mulching via “Quick Shift” lever.
	Cutting configuration	3 rotating blades.
	Cutting width	125 cm
	Cutting height	Continuously adjustable from 2,5 to 11 cm via gas spring.
	Peripheral blade speed	81 m/1"
	Differential locking	On the rear axle, with pedal engagement.
	Front tyres	16x6.50-8
	Rear tyres	20x10.00-8
	Speed	Continuously variable from 0 to 9 km/h + reverse speed from 0 to 8 km/h
	Inner turning radius	70 cm
	Seat	Adjustable.
	Service brake	on the rear wheels via a pedal
	Parking brake	On the rear wheels with lever engagement.
	Mowing capacity per hour (indicative)	8.800 m^2/h
	Standard features	tow hitch and double front headlight.
	Length	206 cm
	Width	132 cm
	Height	118,5 cm
	Distance between axles	142 cm
	Weight	389 kg
