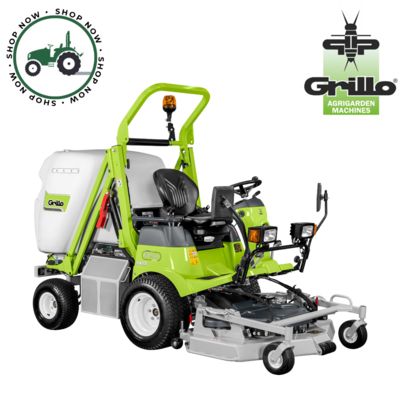

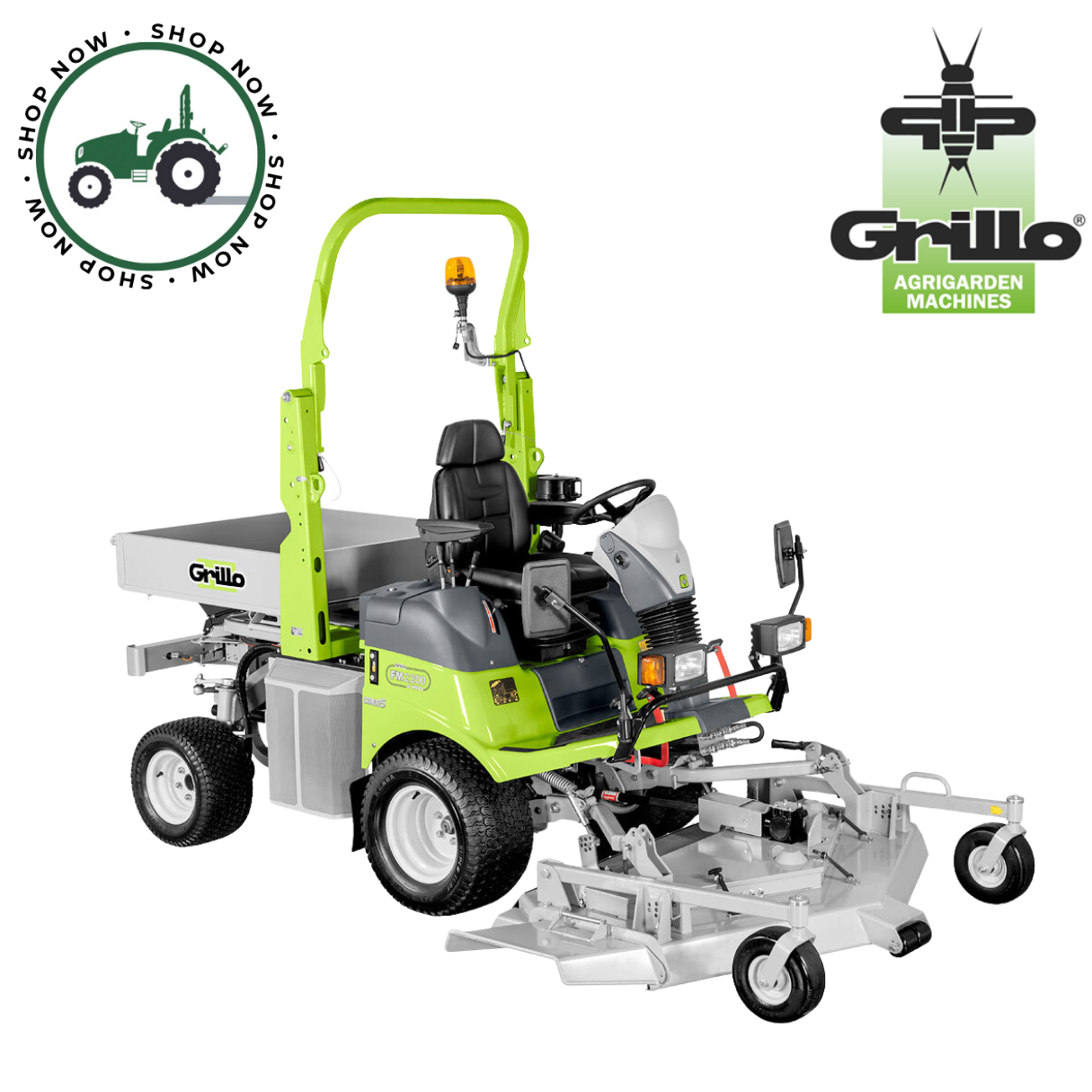

Grillo FM 2200 Stage5 4WD

PLEASE CONTACT US TO CHECK DELIVERY OPTIONS AND POSSIBLE LEAD TIME PRIOR TO ORDERING AT 01829 742146 info@turnergroundscare.co.uk

(We offer FREE delivery within a 50 mile radius)

The FM 2200 has the maximum power and cutting quality in all work conditions even with wet and tall grass. The wide and comfortable driving seat come with pneumatic suspension and guaranteed work visibility.

The cutting deck floats and provides a regular and precise cut even on uneven ground. Traction is maintained through the rear axle being able to tilt to overcome obstacles such as a curb.

	Engine	Yanmar 3TNV88C Stage5 Start electric, with 12 V battery Supply diesel Displacement 1642 cc, 3 Cylinders Power 37 HP (27.5 kW) Liquid cooled with electric impeller and equipped with automatic radiator cleaning device Dry air filter with interchangeable filter cartridges, safety filter and prefilter
	Fuel tank capacity	35 L
	Hydraulic oil tank	25 L
	Traction	Hydraulic, 4-wheel drive (permanent drive even with a narrow turning radius)
	Gearbox	Hydrostatic transmission with 4 hydraulic engines on the 4 wheels
	Clutch	Hydraulic with electric control activated through PTO with blade brake
	Load bed	Body with tilting rear extension, manual tipping by means of gas springs. Load bed with aluminium side extensions, ground made of iron. Rear board can be opened
	Differential locking	Self-engaging and manual by pushing the button
	Front tyres	Turf 24x12.00-12
	Rear tyres	Turf 20x10.00-10
	Steering system	Steering wheel fixed on a height adjustable and reclinable column
	Speed	Continuously variable from 0 to 20 km/h
	Inner turning radius	620 mm
	Seat	Comfortable seat equipped with springs and adjustable, with arm-rests and roll bar
	Mowing capacity per hour (indicative)	15500 m^2/h
	Standard features	Twin-hydraulic takes-off (max. pressure 170 bar, max. capacity 34L/1’ at 2400 rpm) Additional hydraulic push-button operated PTO (max pressure 230 bar, max capacity 34 L/1' a 2400 rpm). Lights and indicator kit
	Length	2500 mm without cutting deck - 3420 mm with cutting deck [cod. 9M0412]
	Width	1350 mm without cutting deck - 1920 mm with cutting deck [cod. 9M0412]
	Height	1850 mm with the roll bar let down – 2200 mm with raised roll bar
	Clear span from the ground	180 mm
	Weight	1085 kg without cutting deck - 1255 kg with cutting deck [cod. 9M0412]

PRICE WITH 155 CM CUTTER DECK AND MULCHING KIT
