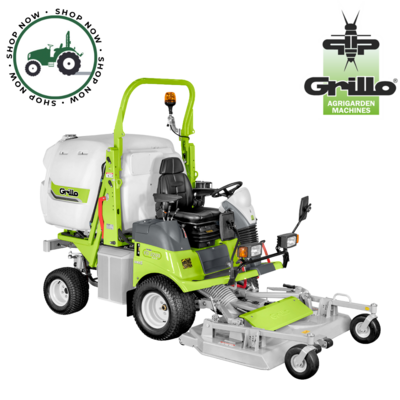

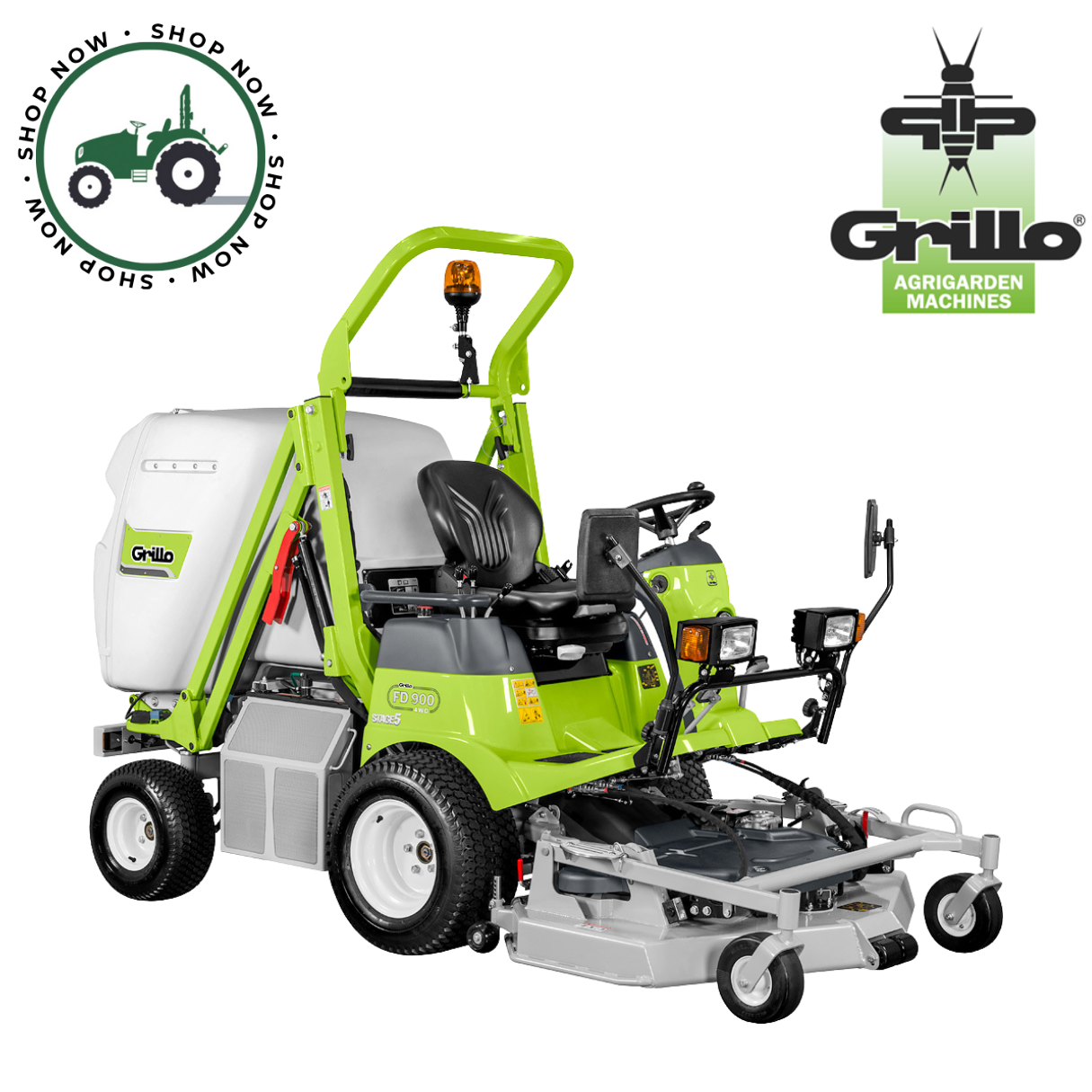

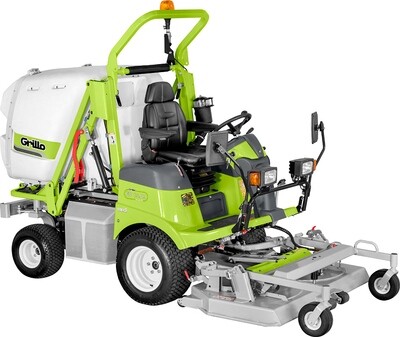

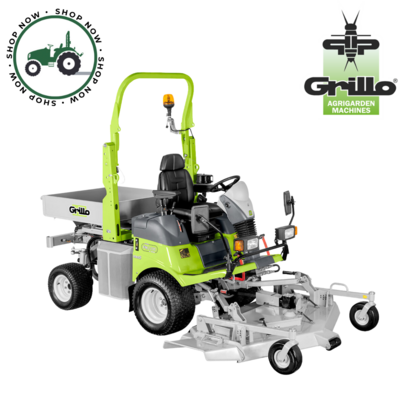

Grillo FD 900 Stage5 4WD Out-front Mower

IN STOCK PLEASE CALL PRIOR TO ORDERING AT 01829 742146 info@turnergroundscare.co.uk

(We offer FREE delivery within a 50 mile radius)

The Grillo FD 900 is a hydrostatic mower with hydraulic 4WD (permanent on tight turns). It is equipped with a 126 cm front cutting deck and grass catcher with a discharge height of 195 cm and a rear overhang of 30 cm. The FD 900 has a narrow steering radius of 37 cm and its compact dimensions makes this mower easy to manoeuvre and safe on slopes. This machine is perfect for maintenance of large areas, gardens and parks with a high number of trees to navigate around.

If you are looking for maximum grip under all working conditions and even on tight turns without damaging grass this is the machine for you.

	Engine	Yanmar 3TNV80F Stage5 Start electric, with 12 V battery Supply diesel Displacement 1267 cc, 3 Cylinders Power 25 HP (18.4 kW) Liquid cooled with electric impeller and equipped with automatic radiator cleaning device Dry air filter with interchangeable filter cartridges, safety filter and prefilter
	Fuel tank capacity	31 L
	Hydraulic oil tank	6,3 L
	Traction	Hydraulic, 4-wheel drive (permanent drive even with a narrow turning radius)
	Gearbox	Hydrostatic transmission with 4 hydraulic engines on the 4 wheels
	Clutch	Electromagnetic for PTO
	Cutter deck	Cutting deck with collection
	Cutter deck	126 cm
	Cutting deck width	133 cm
	Cutting height	From 2 to 10 cm, continuously adjustable through hydraulic.
	Grass collector capacity	750 L
	Grass catcher charging system	The two main blades are fitted with steel fans of the shaft. Motorised baffle providing full and even grass catcher filling.
	Grass collector discharging system	Automatic opening for grass-catcher hydraulic discharge
	Maximal discharging height	195 cm
	Rear projection	30 cm
	Differential locking	Automatic differential lock and manual with push button
	Front tyres	23x10.50-12 Turf
	Rear tyres	18x7.50-8 Turf
	Steering system	Hydraulic drive with steering wheel
	Speed	From 0 to 15 km/h continuously variable
	Inner turning radius	37 cm
	Seat	Grammer, super comfort and adjustable sprung seat. With side steel protections.
	Service brake	Drum brake
	Parking brake	Drum brake
	Mowing capacity per hour (indicative)	9000 m²/h
	Standard features	Automatic disengagement of blades when the grass catcher is full. Hydraulic cutting deck lifting and grass catcher discharge. Road homologation lights.
	Length	291 cm
	Width	133 cm
	Height	166 cm
	Distance between axles	119 cm
	Clear span from the ground	15 cm
	Weight	805 kg without cutting deck; 980 kg with cutting deck

to be applied on FD 900 Stage5 4WD

item no.: 9G6611

weight: 200 kg

to be applied on FD 13.09 Stage5 4WD - FD 900 Stage5 4WD

item no.: 9G6711

weight: 4.5 kg

to be applied on FD 900 Stage5 4WD

item no.: 9M6211

weight: 8 kg
